Two-level vertical rescue training tower
Training Platform B
Two working levels for vertical rescue, lowering and stretcher transfers between decks.
Footprint12.19 x 3.25 m
Decks3.11 m / 6.04 m
Overall height8.44 m
Mass11.0 t
Dimensions

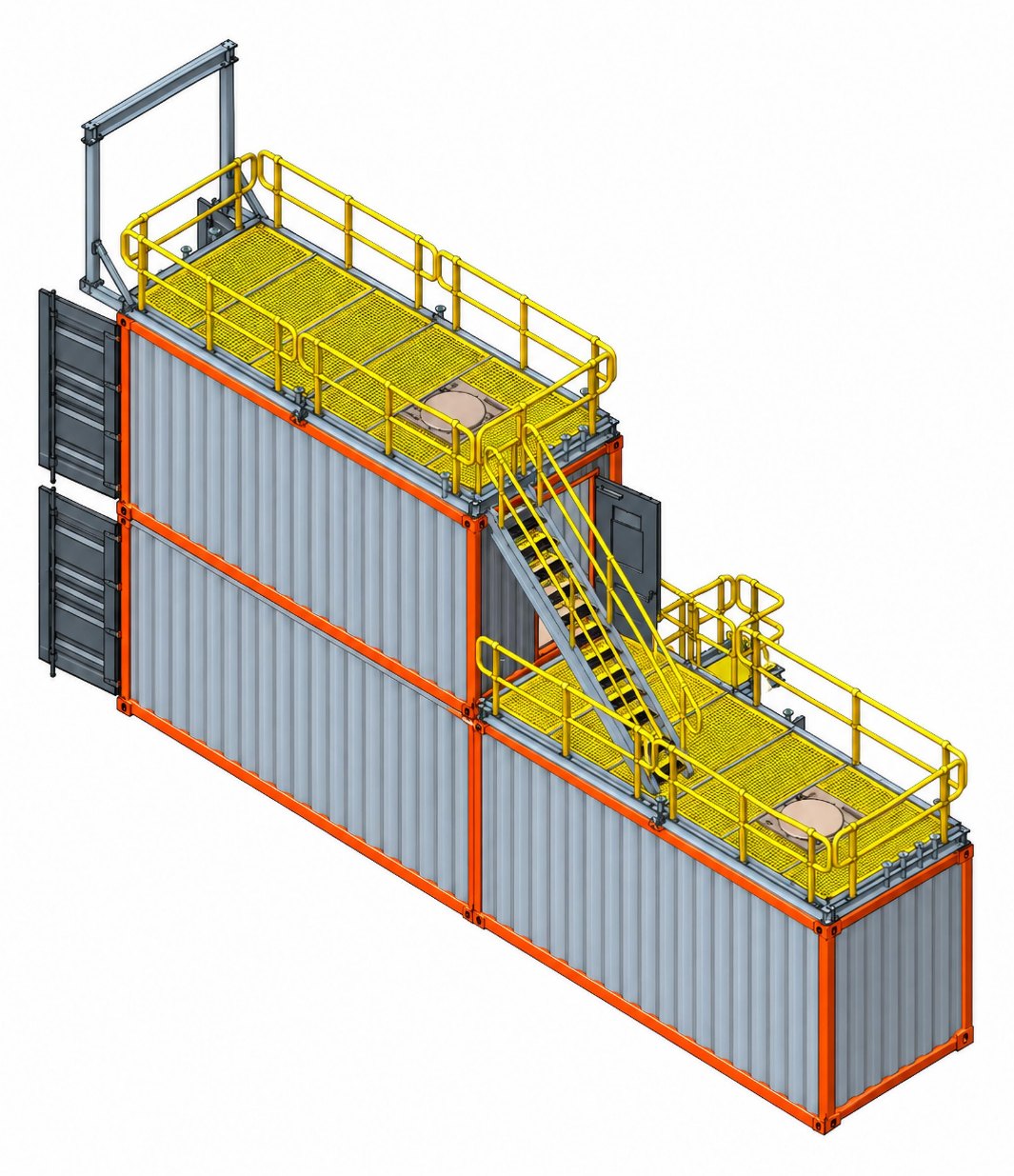

Overall dimensions, nominal. Drawing ref 263292-500-C rev 0.
Specifications
- Containers
- 1 x 40ft + 1 x 20ft, stacked
- Footprint
- 12.19 x 3.25 m including stair
- Deck heights
- 3.11 m and 6.04 m
- Overall height
- 8.44 m to top of anchor beam
- Access
- Deck-to-deck stair
- Manways
- 2 top manways
- Also includes
- Guarded decks on both levels, 21 kN anchor beam
- Approx. mass
- 11.0 t
- Deck live load
- 2.5 kPa (250 kg/m²)
- Point load
- 110 kg
- Anchor beam
- 21 kN, max 2 persons
- Design codes
- AS 1657, AS 3990
- Ground
- Flat, level, compacted ground or concrete pads
- Build time
- 1 to 4 months from sign-off
What your team can train
- Vertical and rope rescueLowering and raising from 6 m off the 21 kN anchor beam.
- Stretcher transfersMove casualties between decks and down the stair under supervision.
- Confined space entry and rescueTop manways on both containers for vertical entry and extraction.
- Working at heightsTwo guarded working levels for access, fall prevention and rescue drills.
Need a different layout, extra levels or a fire-rated room? Platform B can be the starting point for a custom build.
